Kulp K8-B Ready to Ship

Build Specifications

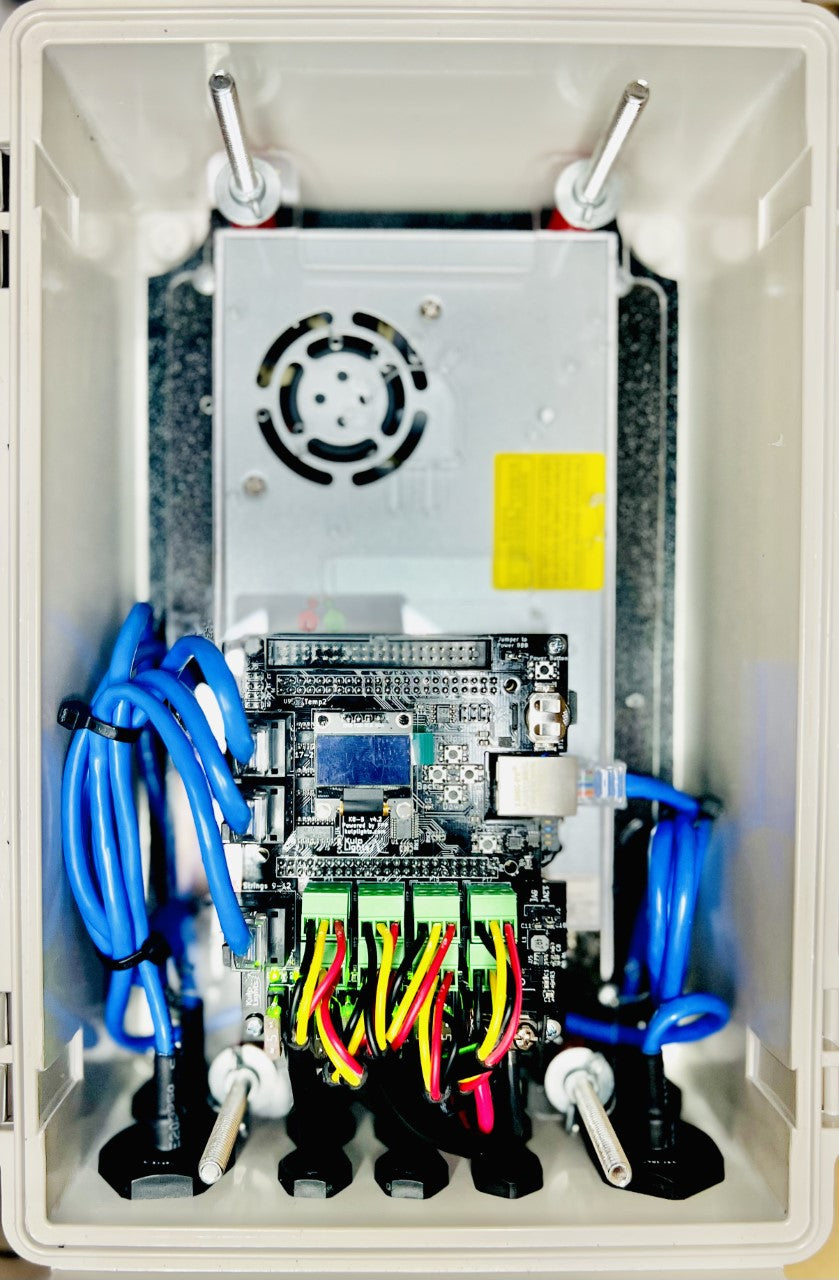

This Kulp K8-B, will be built in a bud box 32016 enclosure, Xconnect pigtails, 3 waterproof outputs for receivers, and A 12v 350-watt meanwell power supply.

Board Specifications

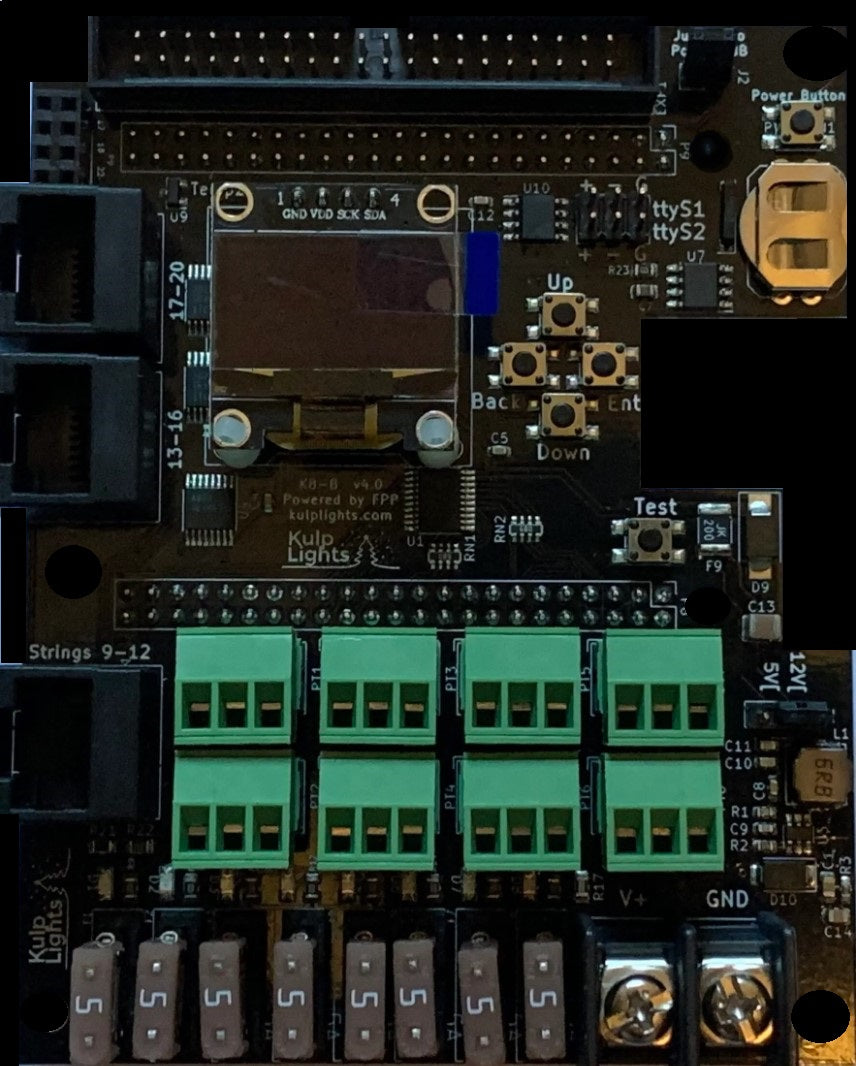

The K8-B is a cape for the BeagleBone Black designed to drive ws2811 LED pixels. It has 8 local ports (fused with LED indicators) that can each drive 800 pixels (with power injection) at 40FPS. It also has 3 RJ45 differential ports that can output an additional 12 strings using differential receivers. Finally, there is an expansion header which can drive an additional 16 strings. The 800 pixels per string is the same for all strings. There are also two UARTs exposed via header pins which can drive DMX universes or Renard or LOR.

It also provides a Real Time Clock, temperature sensors, a header for an OLED display, and four push buttons for navigating menus on the display.
